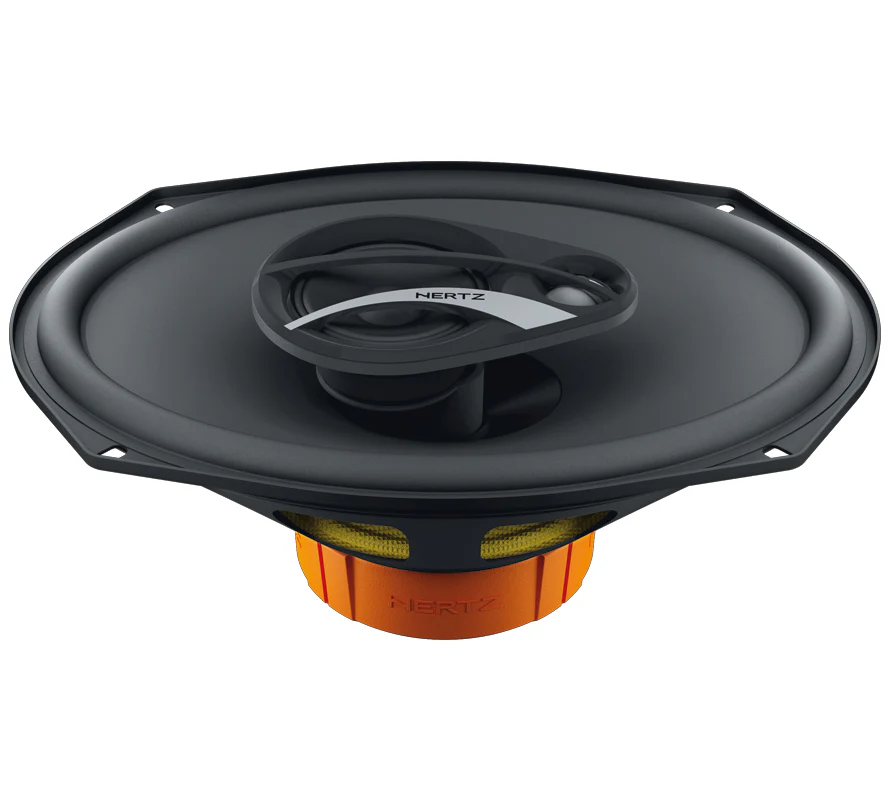

Hertz DCX 710.3 Three-Way Coaxial Car Speakers - Premium 7x10" Oval High-Performance Audio System with 60mm Midrange, PEI Dome Tweeter, TPU Surround, and 300W Peak Power Handling for Superior Sound Quality and Wide Frequency Response

Achieve extraordinary audio performance with Hertz DCX 710.3 Three-Way Coaxial Car Speakers—featuring authentic 3-way coaxial design capable of reproducing wide frequency spectrum from 40Hz to 21kHz delivering full-range audio reproduction, oversized high-density flux ferrite magnetic group providing exceptional magnetic force for improved efficiency and dynamic response, premium TPU (Thermoplatic polyurethane) surround offering superior flexibility and durability compared to traditional rubber or foam surrounds, dedicated 60mm diameter midrange driver ensuring accurate vocal and instrumental reproduction in critical mid-frequency range, advanced PEI dome tweeter delivering crisp high-frequency extension and wide sound dispersion, water-repellent pressed paper cone construction resisting moisture damage in automotive environments, 7x10" (181mm) oval configuration fitting factory speaker locations in many vehicles without modification, impressive 300W peak power handling (150W continuous) accommodating high-output amplification for dynamic listening levels, 4-ohm impedance providing compatibility with wide range of factory and aftermarket head units and amplifiers, exceptional 93dB sensitivity ensuring efficient operation with lower-powered systems, linearity and wide dispersion characteristics delivering involving emotional sound reproduction even at high SPL levels, water-repellent pressed paper dome midrange matching woofer construction for tonal consistency, included protective grille safeguarding components during installation and operation, premium electro-acoustic specifications including low 69Hz resonant frequency and optimized Thiele-Small parameters, 110mm mounting depth accommodating diverse vehicle door and rear deck installations, and proven Hertz Italian engineering delivering superior sound quality and build quality surpassing traditional coaxial speaker components.

Product Overview

An authentic 3-way coax capable of reproducing a wide frequency spectrum. The DCX 710.3 car audio coaxials uses an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels.

Hertz DCX 710.3 represents premium three-way coaxial speaker design combining dedicated woofer, midrange, and tweeter components in space-efficient 7x10" oval configuration. Oversized high-density flux ferrite magnet provides exceptional magnetic force improving driver control, efficiency, and dynamic response. Advanced TPU surround delivers superior flexibility, durability, and linear excursion compared to traditional materials.

Dedicated 60mm midrange driver handles critical vocal and instrumental frequencies ensuring accurate reproduction without typical coaxial midrange compromises. PEI dome tweeter extends high-frequency response to 21kHz with wide dispersion pattern. Water-repellent pressed paper cone construction resists moisture damage from door panel exposure, weather, and humidity.

Impressive power handling accommodates high-output systems—150W continuous, 300W peak power capability. Efficient 93dB sensitivity ensures excellent performance with factory head units or aftermarket amplification. Low 69Hz resonant frequency enables extended bass response. 110mm mounting depth fits many vehicle applications. Includes protective grille.

Key Features

Authentic Three-Way Coaxial Design - Dedicated woofer, midrange, and tweeter components reproduce full frequency spectrum from deep bass to extended highs delivering superior sound quality compared to traditional two-way coaxial speakers.

Oversized High-Density Flux Ferrite Magnet - Premium magnetic group provides exceptional magnetic force improving driver control, efficiency, dynamic response, and power handling delivering involving sound even at high SPL levels.

Premium TPU Surround Construction - Advanced Thermoplastic polyurethane surround offers superior flexibility, durability, and linear excursion characteristics compared to traditional rubber or foam surrounds ensuring long-term reliability and consistent performance.

Dedicated 60mm Midrange Driver - Large-diameter midrange component handles critical vocal and instrumental frequencies with accuracy eliminating typical coaxial midrange compromises delivering natural sound reproduction.

PEI Dome Tweeter with Wide Dispersion - Advanced dome tweeter extends high-frequency response to 21kHz with wide dispersion pattern ensuring crisp detailed highs throughout vehicle interior without narrow sweet spot limitations.

Water-Repellent Pressed Paper Cone - Premium cone material resists moisture damage from door panel installation, weather exposure, and humidity maintaining performance integrity in automotive environments.

7x10" Oval Configuration - Factory-size oval format fits common vehicle speaker locations including rear decks and doors without modification eliminating custom fabrication requirements for many applications.

300W Peak Power Handling - Impressive power capacity (150W continuous, 300W peak) accommodates high-output amplification enabling dynamic listening levels without distortion or component damage.

4-Ohm Impedance - Standard impedance provides compatibility with wide range of factory and aftermarket head units and amplifiers ensuring proper matching without additional equipment.

Exceptional 93dB Sensitivity - High efficiency ensures excellent performance with lower-powered systems including factory head units while delivering outstanding output with aftermarket amplification.

Extended Low-Frequency Response - Low 69Hz resonant frequency enables deep bass reproduction extending frequency response below typical coaxial speaker capabilities for fuller sound.

110mm Mounting Depth - Shallow mounting depth accommodates diverse vehicle door and rear deck installations fitting locations with limited clearance behind mounting surface.

Included Protective Grille - Factory grille safeguards speaker components during installation and operation protecting against accidental contact damage.

Technical Specifications

Specification	Details
Model	DCX 710.3
SKU	DCX 710.3
Brand	Hertz
Component Type	Three-Way Coaxial Speaker System
Size	7 x 10" (181mm oval)
Power Handling - Continuous	150W
Power Handling - Peak	300W
Impedance	4 Ohm
Mounting Depth	110mm (4.3")
Woofer Voice Coil Diameter	25mm (1.0")
Frequency Response	40Hz - 21kHz
Woofer Magnet Type	High-density flux ferrite
Woofer Magnet Size	90 x 32 x 17mm (3.5 x 1.3 x 0.7")
Tweeter Magnet Type	High-density flux ferrite
Midrange Diameter	60mm
Cone Material	Water-repellent pressed paper
Dome Material	Water-repellent pressed paper
Surround Material	TPU (Thermoplastic polyurethane)
Tweeter Type	PEI dome
Weight per Speaker	1.35kg (2.97 lbs)
Grille	Included
Sensitivity (SPL)	93 dB
Resonant Frequency (Fs)	69 Hz
DC Voice Coil Resistance (Re)	3.3 Ohm
Equivalent Air Volume (Vas)	23.0 L
Moving Mass (Mms)	22.0 g
Mechanical Compliance (Cms)	0.24 mm/N
Force Factor (BL)	4.9 T*m
Total Q Factor (Qts)	1.06
Electrical Q Factor (Qes)	1.31
Mechanical Q Factor (Qms)	5.50
Effective Piston Diameter (D)	181mm

Frequently Asked Questions

Q: What makes DCX 710.3 a "three-way" coaxial speaker?

A: DCX 710.3 features three separate driver components reproducing different frequency ranges: woofer handles bass frequencies (40Hz-midrange crossover), dedicated 60mm midrange driver reproduces critical vocal and instrumental frequencies, PEI dome tweeter extends high frequencies to 21kHz. True three-way design provides superior sound quality compared to traditional two-way coaxial speakers by dedicating separate components to bass, midrange, and treble ranges eliminating compromises inherent in simpler designs. Result: more accurate frequency reproduction, improved clarity, better dispersion, and involving emotional sound quality.

Q: Will DCX 710.3 fit my vehicle's factory 6x9" speaker locations?

A: DCX 710.3 measures 7x10" (181mm) which differs from 6x9" (6" x 9") dimensions. Verify exact factory speaker opening dimensions and mounting hole pattern before purchase. Some vehicles with 6x9" locations may accommodate 7x10" speakers with minor modification or adapter brackets—check vehicle-specific fitment information. DCX 710.3 mounting depth 110mm (4.3")—verify adequate clearance behind mounting surface. For guaranteed fitment, measure factory opening dimensions and compare to DCX 710.3 specifications or consult vehicle-specific speaker fitment guides.

Q: Can DCX 710.3 be powered by factory head unit?

A: Yes—DCX 710.3 4-ohm impedance compatible with factory and aftermarket head units. Exceptional 93dB sensitivity ensures excellent performance with factory head unit power output (typically 15-25W RMS). While DCX 710.3 capable of handling 150W continuous power for maximum performance with aftermarket amplification, efficient design delivers involving sound quality with factory systems. For best results: upgrade to quality aftermarket head unit or add dedicated amplifier providing 75-150W RMS per channel maximizing DCX 710.3 capabilities.

Q: What is TPU surround and why is it better?

A: TPU (Thermoplastic polyurethane) surround provides superior performance compared to traditional rubber or foam surrounds. Benefits: exceptional flexibility enabling linear cone excursion, superior durability resisting cracking and deterioration from temperature extremes, moisture resistance preventing degradation from humidity or water exposure, consistent performance across temperature range, long-term reliability maintaining flexibility over years. Traditional rubber surrounds harden and crack over time, foam surrounds deteriorate from UV exposure and moisture. TPU surround ensures DCX 710.3 maintains performance integrity throughout service life in demanding automotive environments.

Q: Does DCX 710.3 require external crossover network?

A: No—DCX 710.3 includes integrated crossover network built into speaker assembly. Crossover directs appropriate frequencies to woofer, midrange, and tweeter components ensuring proper frequency distribution without external components. Simply connect speaker wires to DCX 710.3 terminals—internal crossover handles frequency division automatically. Benefits: simplified installation, no external crossover mounting required, optimized frequency response, proper component protection. For advanced applications: DCX 710.3 can be upgraded with external active crossover and multi-channel amplification for ultimate performance and tuning flexibility.

Q: What is the difference between water-repellent pressed paper cone and polypropylene?

A: Water-repellent pressed paper cone provides superior sonic characteristics compared to polypropylene: better internal damping reducing cone resonances, natural tonal balance without synthetic coloration, smooth frequency response, lower distortion. Water-repellent treatment protects paper cone from moisture damage maintaining structural integrity in automotive door installations exposed to weather. Polypropylene cones offer moisture resistance but typically exhibit more coloration and resonances affecting sound quality. Hertz uses water-repellent treated paper combining natural sonic benefits with practical moisture protection for automotive applications.

Q: Can DCX 710.3 be installed in door locations?

A: Yes—DCX 710.3 suitable for door installation with 110mm (4.3") mounting depth accommodating most door panels with adequate clearance behind speaker. Water-repellent cone construction resists moisture damage from door panel exposure including weather seal leaks and humidity. Installation considerations: verify adequate mounting depth measuring from mounting surface to window mechanism, door frame, or obstacles, ensure proper speaker enclosure or door treatment for optimal bass response, seal door panel penetrations preventing moisture entry, secure mounting using all mounting points preventing vibration. Rear deck installation also suitable for vehicles with adequate deck depth and opening dimensions.
