MB Quart MBQX-STG5-1 | Five Speaker Audio System | 800 Watt STAGE 5

Experience Premium Audio Performance with MB Quart's 800W STAGE 5 System

Five Speaker 800 Watt STAGE 5 Audio System includes AM/FM, BT LED Source Unit, 4 speakers, under seat 10″ subwoofer, & all necessary mounting panels & harnessing are included

Specifications:

• Series: Can-Am X3 Tuned
• Colour: Black
• Warranty: 2 Years
• IPX Rating: IPX5, IPX67
• Compatible Vehicles: Can-Am Maverick X3 2017 and newer
• UTV Kit Total System Power (watts): 800
• Additional Details: See Kit Inclusions and Features & Benefits for product components and details.
• Source Unit: The AM/FM, Bluetooth source unit (GMR-LED) is mounted in a dash accessory that will not require the radio to be removed to access the fuse panel or diagnostic port. MBQX-RAD-1: LED Gauge Mount Radio with AM/FM/BT and Apple Control Maverick X3 Radio Dash Mounting Panel.
• Front Speakers: The 6.5 components are the NP1-116 two way speakers. The left speaker panel is Smart-Lok? Diff Model capable and retains all factory mounts for ECU's. No relocation brackets or customization required. MBQX-POD-1: 6.5 Inch 2 Way Composite Coaxial Speakers, right and left speaker dash panels for 6.5 inch speakers, easy installation, 400 Watt Two Channel Class D, Compact Powersports Amplifier.

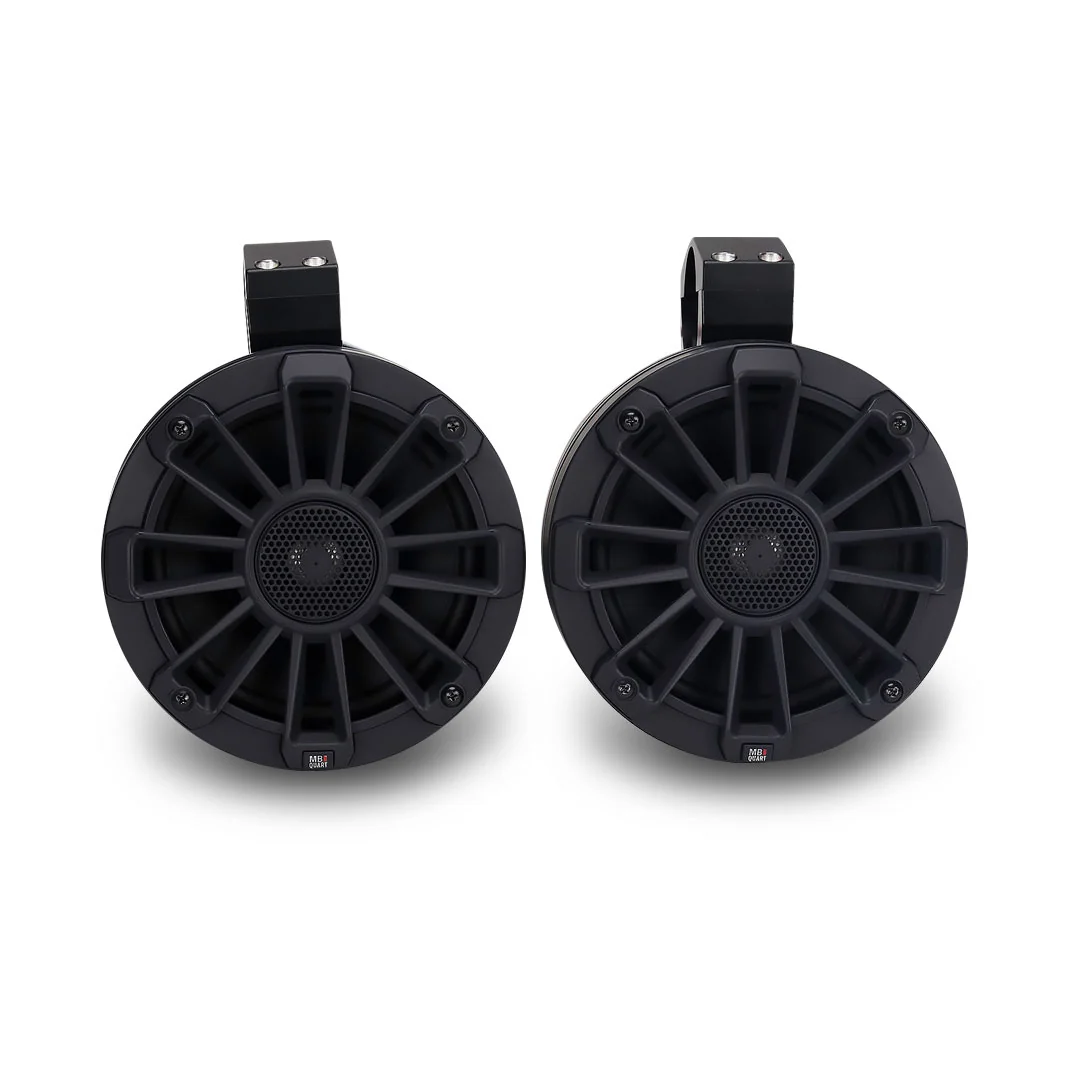

• Rear Speakers: The 6.5 rear pod speakers are the NPT1-116 two way speakers, only available for the Can Am X3. NPT1-116B: (2) 6.5 inch 2 way Composite Coaxial Roll Cage Mount Speakers with Swivel Mount Brackets NPT1-116BB.
• Subwoofer: Dual Voice Coil 10 Inch Subwoofer in a High Impact HDPE Composite Under Seat Enclosure. MBQX-SUB-2: 10 inch, Dual 4 ohm Subwoofer, Maverick X3 Specific Under-Seat subwoofer enclosure, 400 watt Class D, Compact Powersports Subwoofer Amplifier.
• Full Range Amplifier: NA2-400.2 High Efficiency, Full Range Class D 400 Watt Amplifier with mounting plate.
• Subwoofer Amplifier: NA2-400.1 High Efficiency, Class D 400 Watt Mono subwoofer Amplifier.
• Time and Tools: Standard hand tools are required. See the manual for time on each of the different components.
