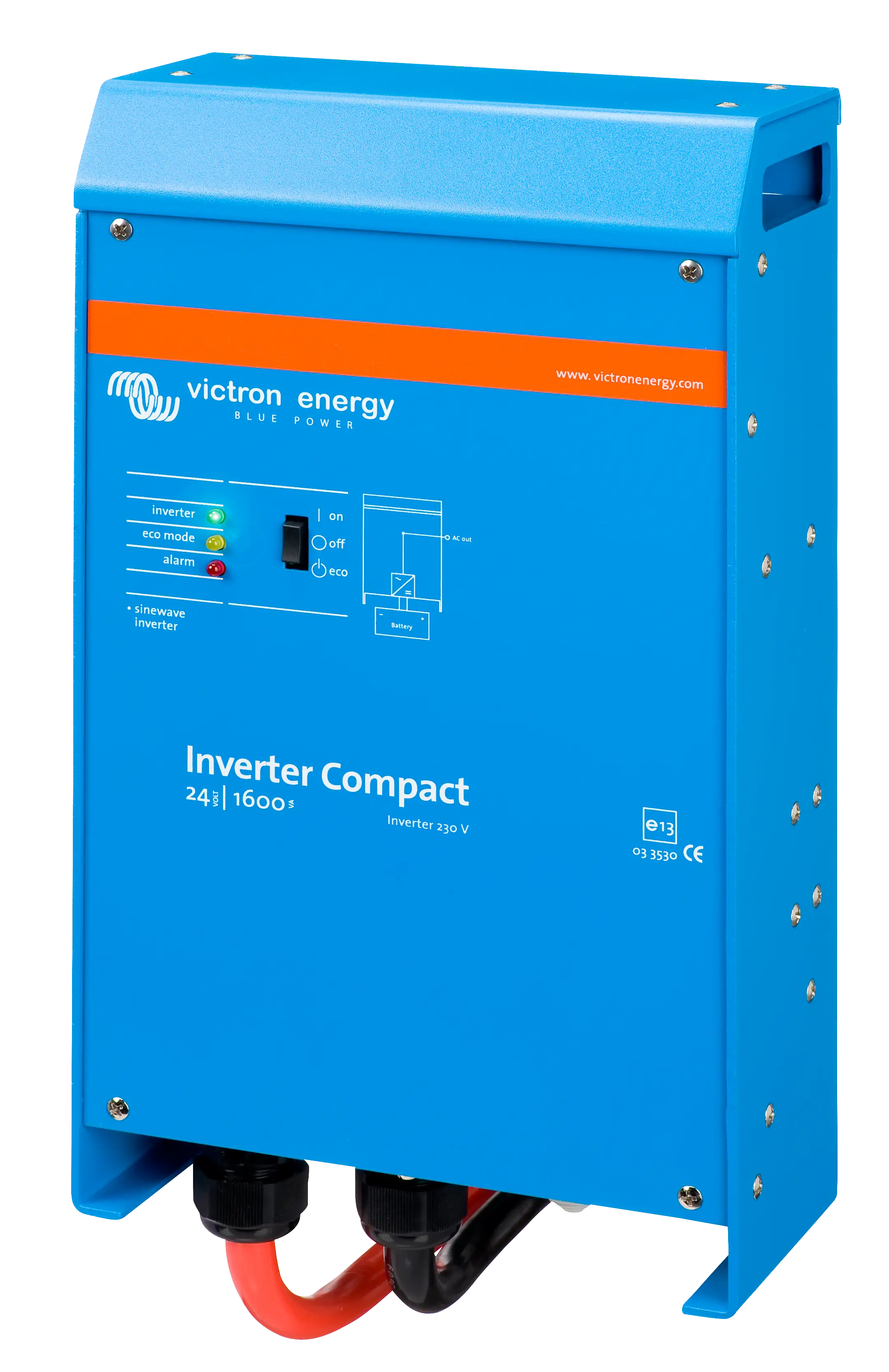

Victron Energy CIN242160000 Inverter Compact 24/1600 230V VE.Bus | Reliable Off-Grid & Backup Power Solution

The Victron Energy CIN242160000 Inverter Compact 24/1600 230V VE.Bus delivers reliable, high-efficiency pure sine wave power for professional use.

Designed for off-grid systems, backup power, and mobile applications, this inverter ensures stable electricity for sensitive electronics, appliances, and demanding equipment. With its compact size and robust build, it’s the perfect balance between performance and portability.

Whether for residential backup, RVs, boats, or remote installations, the Inverter Compact guarantees continuous, clean energy you can trust.

Victron Energy CIN242160000 Key Benefits & Features:

• Pure Sine Wave Output – Protects sensitive electronics and ensures smooth performance for all appliances.

• High Efficiency Design – Minimizes energy loss, maximizing power availability and battery life.

• Professional-Grade Reliability – Engineered for heavy-duty, continuous operation in demanding environments.

• Wide Application Range – Ideal for off-grid homes, RVs, boats, work sites, and emergency backup systems.

• Flexible Power Options – Available in 12V or 24V models, from 1200VA up to 2000VA.

• Compact & Durable Build – Saves space while offering rugged durability for long-term use.

• VE.Bus Connectivity – Seamless integration with Victron systems for smarter energy management.

Tech Specifications:

• Model: Inverter Compact C24/1600
• Input Voltage Range (VDC): 19 – 33 V (24V model)
• Output Voltage: 230 VAC ± 2 %
• Output Frequency: 50 Hz ± 0.1 %
• Continuous Output Power (25°C): 1600 VA / 1300 W
• Continuous Output Power (40°C): 1200 W
• Continuous Output Power (65°C): 800 W
• Peak Power: 3000 W (for startup surges and demanding loads)
• Max Efficiency (24V model): Up to 94% – reduces energy waste and extends battery life
• Zero Load Power: 10 W (24V) | AES mode: 8 W | Search mode: 3 W
• Operating Temperature: -40 °C to +65 °C (fan-assisted cooling)
• Humidity: Up to 95% (non-condensing) – ideal for marine and off-grid environments
  Material & Colour: Rugged aluminium, blue (RAL 5012)
• Protection Category: IP21 – resistant to dust and touch ingress
• Battery Connection: Pre-fitted 1.5 m battery cables included
• AC Connection: G-ST18i plug for easy installation
• Dimensions (HxWxD): 375 x 214 x 110 mm – compact and space-saving
  Safety Standard: EN 60335-1
• EMC Standards: EN 55014-1 / EN 55014-2 – tested for emission and immunity

Frequently Asked Questions

• What is the Victron Energy CIN242160000 Inverter Compact used for?
  This inverter is designed for off-grid systems, backup power, RVs, boats, and professional applications where reliable pure sine wave power is needed. It ensures stable electricity for sensitive electronics and appliances.
• Can this inverter power household appliances?
  Yes. With 1600 VA / 1300 W continuous power and a 3000 W peak capacity, it can handle most household electronics, lights, laptops, TVs, fridges, and smaller appliances.
• What makes the Victron Inverter Compact different from other inverters?
  It combines high efficiency (up to 94%), pure sine wave output, and VE.Bus communication for advanced system integration. Unlike basic inverters, it’s built for professional-duty, long-term performance.
• Can I use this inverter for solar power systems?
  Absolutely. The Inverter Compact integrates seamlessly with solar setups and can be combined with Victron charge controllers, batteries, and monitoring systems for a complete off-grid solution.
• Is the Victron Compact Inverter suitable for marine or RV use?
  Yes. Its rugged aluminium build, wide operating temperature (-40 to +65°C), and compact size make it perfect for boats, campers, and mobile applications.
• What protections are built into this inverter?
  It features a comprehensive protection suite against overload, short circuit, overheating, and incorrect battery voltage, ensuring safe operation.
• Can I monitor the inverter remotely?
  Yes. Through VE.Bus connectivity, the inverter can be linked to Victron monitoring tools, enabling remote control, system integration, and parallel/three-phase setups.
